Asoni CAM 630/ 633/ 647
H.264 Optical Zoom IP Speed dome
|
|
| -- |
Optical Zoom:
CAM630: 30X / CAM633: 23X / CAM647: 37X
|
| -- |
H.264/MJPEG/MPEG4 Triple compression |
| -- |
H.264/MJPEG/MPEG4 Triple streaming |
| -- |
Built-in mechanical IR cut filter |
| -- |
Up to 30FPS@720x480 |
| -- |
WDR(wide-dynamic-range) for strong daylight
Option: CAM630 / CAM633
Bulid-in: CAM647
|
| -- |
3GPP for monitoring via 3G mobile phone |
| -- |
Preset point:
64 preset points: CAM630 / CAM633
128 preset points : CAM647
|
| -- |
2-way audio |
| -- |
2 Sensor inputs & 2 Relay outputs |
| -- |
IP66 waterproof standard |
Asoni CAM630
Asoni CAM633
Asoni CAM647 |
| |
|
| |
Asoni CAM630A/ 633A/ 647A
(Wall-Mount)
H.264 Optical Zoom IP Speed dome
|
|
| -- |
Optical Zoom:
CAM630B: 30X / CAM63B3: 23X /
CAM647B: 37X |
| -- |
H.264/MJPEG/MPEG4 Triple compression |
| -- |
H.264/MJPEG/MPEG4 Triple streaming |
| -- |
Built-in mechanical IR cut filter |
| -- |
Up to 30FPS@720x480 |
| -- |
WDR(wide-dynamic-range) for strong daylight
Option: CAM630 / CAM633
Bulid-in: CAM647 |
| -- |
3GPP for monitoring via 3G mobile phone |
| -- |
Preset point:
64 preset points: CAM630A / CAM633A
128 preset points : CAM647A |
| -- |
2-way audio |
| -- |
2 Sensor inputs & 2 Relay outputs |
| -- |
IP66 waterproof standard |
Asoni CAM630A
Asoni CAM633A
Asoni CAM647A |
| |
|
| |
Asoni CAM630B /633B/ 647B
(Pendant-Mount)
H.264 37X IP Speed dome
|
|
| -- |
Optical Zoom:
CAM630B: 30X / CAM633B: 23X /
CAM647B: 37X |
| -- |
H.264/MJPEG/MPEG4 Triple compression |
| -- |
H.264/MJPEG/MPEG4 Triple streaming |
| -- |
Built-in mechanical IR cut filter |
| -- |
Up to 30FPS@720x480 |
| -- |
WDR(wide-dynamic-range) for strong daylight
Option: CAM630 / CAM633
Bulid-in: CAM647 |
| -- |
3GPP for monitoring via 3G mobile phone |
| -- |
Preset point:
64 preset points: CAM630B / CAM633B
128 preset points : CAM647B |
| -- |
2-way audio |
| -- |
2 Sensor inputs & 2 Relay outputs |
| -- |
IP66 waterproof standard |
Asoni CAM630B
Asoni CAM633B
Asoni CAM647B |
| |
|
| |

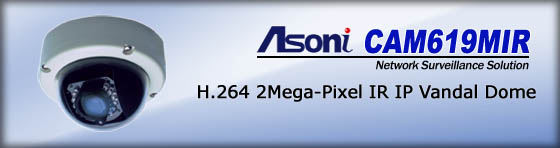

Asoni CAM619IR-PoE
12M IR 2Mega-Pixel H.264 IP Vandal Dome Camera
-- 2Mega-Pixel CMOS
-- IR distance up to 12 meters
-- H.264/MJPEG/MPEG4 Triple compression
-- H.264/MJPEG/MPEG4 Triple streaming
-- 3GPP for monitoring via 3G mobile phone
-- Up to 15FPS@1600x1200
-- Up to 30FPS@1280x720
-- 2-way audio
-- Vandal-proof dome camera
-- IP66 waterproof standard
-- 1 Sensor inputs & 1 Relay outputs
-- Support SD card for event recording
-- Embedded PoE (CAM619IR-PoE)
Asoni CAM619IR |
|
| |
|
| |
Asoni CAM613-PoE/CAM613W
H.264 2Mega-Pixel IP Camera
-- 2 Mega-Pixel CMOS sensor
-- H.264/MJPEG/MPEG4 Triple compression
-- H.264/MJPEG/MPEG4 Triple streaming
-- 3GPP for monitoring via 3G mobile phone
-- Up to 15FPS@1600x1200
-- Up to 30FPS@1280x720
-- Optional IR Cut Filter for Day/Night usage
-- Support SD card for event recording
-- 2-way audio
-- 1 Analog video output
-- 1 Sensor inputs & 1 Relay outputs
-- Embedded PoE (CAM613-PoE)
-- Embedded Wireless (CAM613W)
Asoni CAM613 |
|
| |
|
| |
Asoni CAM620
H.264 12X PTZ IP Dome Camera
-- H.264/MJPEG/MPEG4 Triple compression
-- H.264/MJPEG/MPEG4 Triple streaming
-- 3GPP for monitoring via 3G mobile phone
-- Up to 30FPS@720x480
-- Remote Pan(270°)/ Tilt(120°)/ Optical
Zoom(12X)
-- Support SD card for event recording
-- 2-way audio
-- 1 Sensor input & 1 Digital output
-- Day/Night functionality by IR Cut Filter
-- Embedded Wireless (CAM620W)
-- Embedded PoE (CAM620-PoE)
Asoni CAM620 |
|
| |
|
| |
Asoni CAM620A
H.264 12X PTZ Outdoor IP Dome Camera
-- H.264/MJPEG/MPEG4 Triple compression
-- H.264/MJPEG/MPEG4 Triple streaming
-- 3GPP for monitoring via 3G mobile phone
-- Up to 30FPS@720x480
-- Remote Pan(270°)/ Tilt(120°)/ Optical
Zoom(12X)
-- Support SD card for event recording
-- 2-way audio
-- 1 Sensor input & 1 Digital output
-- Day/Night functionality by IR Cut Filter
-- Embedded PoE (CAM620A-PoE)
Asoni CAM620A |
|
| |
|
| |
Asoni CAM620B
H.264 12X PTZ Outdoor IP Dome Camera
-- H.264/MJPEG/MPEG4 Triple compression
-- H.264/MJPEG/MPEG4 Triple streaming
-- 3GPP for monitoring via 3G mobile phone
-- Up to 30FPS@720x480
-- Remote Pan(270°)/ Tilt(120°)/ Optical
Zoom(12X)
-- Support SD card for event recording
-- 2-way audio
-- 1 Sensor input & 1 Digital output
-- Day/Night functionality by IR Cut Filter
-- Embedded PoE (CAM620B-PoE)
Asoni CAM620B |
|
| |
|
| |
Asoni SVR610
H.264 1CH Network Video Server
-- H.264/MJPEG/MPEG4 Triple compression
-- H.264/MJPEG/MPEG4 Triple streaming
-- 3GPP for monitoring via 3G mobile phone
-- Up to 30FPS@720x480
-- 1 Video input & 1 Loopback video output
-- Support SD card for event recording
-- 2-way audio
-- 2 Sensor inputs & 2 Relay outputs
-- RS-485 port for PTZ control
-- Embedded Wireless (SVR610W)
-- Embedded PoE (SVR610-PoE)
Asoni SVR610 |
|
| |
|
| |
Asoni CAM447
37X IP Speed dome
|
|
| -- |
37X optical zoom |
| -- |
MPEG4 / MJPEG Dual codec compression |
| -- |
MPEG4 / MJPEG Dual streaming |
| -- |
Built-in mechanical IR cut filter |
| -- |
Up to 30FPS@720x480 |
| -- |
WDR(wide-dynamic-range) for strong daylight |
| -- |
3GPP for monitoring via 3G mobile phone |
| -- |
Vari-focal Lens 3.5 ~ 129.5 mm |
| -- |
2-way audio |
| -- |
2 Sensor inputs & 2 Relay outputs |
| -- |
IP66 waterproof standard |
| Asoni CAM447 |
| |
|
| |
Asoni CAM432-PoE
80M IR Mega-Pixel Progressive CCD IP Camera
-- Mega-Pixel Sony Progressive CCD
-- IR distance up to 80 meters
-- MPEG4 / MJPEG Dual codec compression
-- MPEG4 / MJPEG Dual streaming
-- 3GPP for monitoring via 3G mobile phone
-- Up to 15FPS@1280x960 (MJPEG)
-- Up to 30FPS@640x480 (MPEG4)
-- Vari-focal Lens 10 ~ 40 mm
-- 2-way audio
-- 2 Sensor inputs & 2 Digital outputs
-- IP66 waterproof standard
-- Embedded PoE (CAM432-PoE)
Asoni CAM432 |
 |
|
| |
Asoni CAM431
Mega-Pixel Progressive CCD IP Camera
-- Mega-Pixel Sony Progressive CCD
-- MPEG4 / MJPEG Dual codec compression
-- MPEG4 / MJPEG Dual streaming
-- 3GPP for monitoring via 3G mobile phone
-- Up to 15FPS@1280x960 (MJPEG)
-- Up to 30FPS@640x480 (MPEG4)
-- 2-way audio
-- 2 Sensor inputs & 2 Digital outputs
-- Embedded PoE (CAM431-PoE)
-- Optional IR Cut Filter for Day/Night usage
-- Embedded Wireless (CAM431W)
Asoni CAM431 |
|
|
| |
Asoni CAM422M-PoE
Mega-Pixel 10M IR IP Camera
-- 1.3 Mega-Pixel CMOS Sensor
-- MPEG4 / MJPEG Dual codec compression
-- MPEG4 / MJPEG Dual streaming
-- 3GPP for monitoring via 3G mobile phone
-- Up to 10FPS@1280x1024, 30FPS@640x480
-- IR distance up to 10 meters
-- 1 Sensor inputs & 1 Relay outputs
-- 2-way audio
-- Embedded PoE (CAM422M-PoE)
Asoni CAM422M |
|
|
