Pendant-Mount Enclosure with Power Box

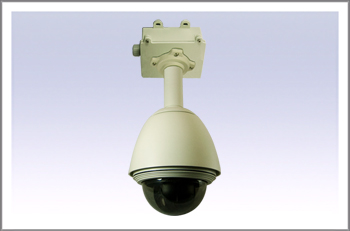

Asoni CAM429BP Enclosure
  • Aluminum Dome enclosure, suitable for outdoor and indoor installation.
 Asoni CAM429A Enclosure
  • Double-Decked design strengthens the heat insulation.
  • Built-in fan and heater make sure the mechanism works in a certain temperature.
  • Stainless steel retaining cable in Dome housing and Power box.
  • Fluorocarbon Baking Varnish: Endurable environment, resistible acid and base.

Specifications
    Fan: 40oC ON, 30oC OFF
    Heater: 5oC ON, 15oC OFF
    In 12V DC, Consumption 12W Max.
Compliance To
    CE According to EMC DIRECTIVE 89/336/EEC
    FCC According to FCC Part 15 Class B (DoC)
    IP66 According to IPT930100 (EN: 1038)
    RoHS According to CS / 2006 / 70002 (SGS)

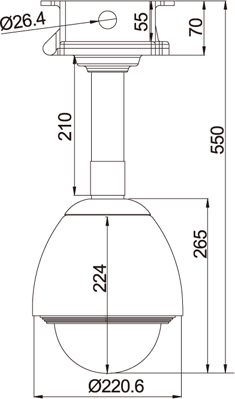

Dimensions
