MJPEG 9CH DVR

Asoni ASA-9060

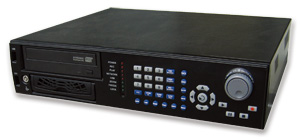

Asoni 9CH DVR ASA-9060 ˇEDisplay video no delay, video live reach 480 fps
ˇEUltra-high-recording resolution 720x240 (NTSC) / 720x288 (PAL)
ˇERecording speed supreme reach 60 fps (NTSC) / 50 fps (PAL)
ˇEUSB flash drive backup and firmware update
ˇETriplex operation standalone 9ch DVR, record/playback/network at one time
ˇERemote viewer software, net viewer central control, graphical user interface
ˇETCP/IP, DHCP, Support both static and dynamic IP
ˇESpecialty still Controller, search data fast more, convenient
ˇE192 configurable detection areas for per channel
ˇESimultaneous 1 channel real-time audio and video recording
ˇESupport two HD (internal and Mobile rack). (The goods of production no hard disk)
ˇESupport RS-232 and RS-485 connect port for Remote Control
ˇESupport CD-RW Backup

ˇEIR remote-controlled
ˇEAuthorizations by the classified passwords

Specifications
Video Type
NTSC
PAL
Video Input
9 CH Input / 1V p-p / 75 Ohm / BNC
Audio Input
1 CH Input / RCA
Video Output
9 CH Looping Output/ BNC, 2 CH Monitor Output/ BNC
Audio Output
1 CH Output / RCA
Display Mode
Full Mode, 4/9 Division, Circulate Auto Switcher
Display Resolution
720 x 480
720 x 576
Recording Resolution
720 x 240
720 x 288
Recording Resolution
Highest
720 x 480
Highest
720 x 576
High
720 x 240
High
720 x 288
Normal
352 x 240
Normal
352 x 288
Data Size
Normal Image
13~17KB
Normal Image
15~19KB
Complex Image
20~25KB
Complex Image
22~27KB
Recording Speed
Max 60 fps
Max 50 fps
Compression Algorithm
Modified M-JPEG
OS
Embedded Linux
Triplex
Record / Playback / Network
Recording Mode
Full-time, Manual, Schedule, Event
Schedule Recording
Every day circulation, four sector (full-time/ minute)
Status Indicator (LED)
Power, Record, Playback, Network, USB Archive, Zoom magnify, Freeze, Key lock
Event Mode
Alarm Trigger, Motion Trigger
Recording Duration: 10~99 second
Alarm Connect
9 Alarm In / 1 Relay Out (N.O. or N.C. selectable)
Playback
Normal: x1 multiple speed
Fast Forward: x2 / x4 / x8 / x16 multiple speed
Rewind: x2 / x4 / x8 / x16 multiple speed
Move 1 image per push button at still image (Still Controller)
Searching function: Time / Event / Manual / Schedule search
Network Protocol
TCP/IP (Static IP, DHCP)
Communication Protocol
RS-232, RS-485
HDD Type
EIDE / ATA-66 / 3.5 inch / 7200rpm
HDD Management
Pre-formatting not required (Automatic formatting by system)
P/T/Z Control
Internal Communication Protocol, RS-485 interface Control
Archiving
USB 2.0 Disk, CD-R/W
Firmware Update
Use mix with USB 2.0 to arrive at USB flash drive firmware update
Multi-language
English / Chinese / Other (Optional)
Control Mode
Front panel / IR remote-controlled / Remote keypad (Optional)
Network Control
Net Viewer (PC application program) to LAN download
Network Function
Live Play Viewer / Network event list Play / USB flash drive File Play / PTZ Control
Power Supply
AC110V/ AC230V 4/2A MAX.  50~60Hz
Dimensions
43(W) x 37(D) x 9.6(H) cm (standard 2U machine)
Weight
17.64 lbs (Without Hard Disk)
Operating Temperature
5oC ~ 40oC
