| Q: What is CBR? |
TOP |
A: There are two bit rate modes: CBR and VBR. CBR means "Constant Bit Rate". You can refer below left picture of camera. When you chose "Advanced Mode" then "CBR", you can select different video bitrate.

Generally, bit rate wil be affected by some factors : Resolution, Frame rate and Video Quality.
You can refer the above right picture, bit rate just like the outlet of stopcock. When you choose CBR as bit rate mode, it will fix the outlet width, so you can estimate the total bandwidth during a period time.
Because CBR value is the maximum bandwidth, when you choose CBR as bit rate mode, no matter which resoluton, fps or video quality you select, it won't affect the bandwidth(storage capacity).
For example:
A: CBR=1.5Mbps, resolution=720x480, fps=15, MPEG4
B: CBR=1.5Mbps, resolution=1280x720, fps=30, H.264
A and B have same CBR value, thus, when you calculate their storage capacity, they will have a same result. |
|
| |
|
| |
| Q: How can I see the video through mobile phone? |
TOP |
A:
Please check if your mobile phone support 3GPP or Streaming player.
(1) After set up all network configuration, please type below link in your streaming player of mobile phone:
rstp://[Camera's IP]:[rstp port]/[path]
(2) If your broswer of mobiel phone supports JAVA, you can type below link:
http://[Camera's IP]:[http port]/Jview.html
(3) If your mobile phone are smart phone:
For MPEG4 series camera, if the firmware is V3.2.70
iphone: http://[camera_ip]:port
Android: http://[camera_IP]:port/Jview.html
For H.264 series camera, if the firmware is V1.0.18 or above
iphone: http://[camera_ip]:port
Android: http://[camera_ip]:port
Note:SVR440/640 are not supported by mobile viewing.
|
|
| |
| Q: How to install inside connector model? |
TOP |
A: Please click here to refer how to install inside connctor model
|
|
| |
| Q: What is the speed rate and cover distance of wireless models? |
TOP |
A: Our wireless model cameras support IEEE 802.11b/g
| Protocol |
Speed rate (max.) |
Cover distance (indoor) |
Cover distance (outdoor) |
| 802.11b |
11Mbit /s |
30M |
100M |
| 802.11g |
54 Mbit /s |
30M |
100M |
|
|
| |
| Q: Can the SD card do full time recording? |
TOP |
A: SD card can't do full time recording, it is only for "Event recording". When detecting motion, sensor in, IP check, network disconnection, the video will be saved to SD card.
MPEG4 model will record for 15 seconds and then stop for 1 minutes then repeat.
For example: 12:00:00~12:00:15 recording, 12:00:16~12:01:15 stop, 12:01:16~12:01:30 recording....
H.264 model will record for 20 minutes and then stop for 30 seconds then prepeat.
For example: 12:00:00~12:20:00 recording, 12:20:01~12:20:30 stop, 12:20:31~12:40:30 recording...
PS. When the SD recording function is activiated, the FPS of live view video will be 5FPS only and it won't record the audio.
You can view the compatible list of SD card here
|
|
| |

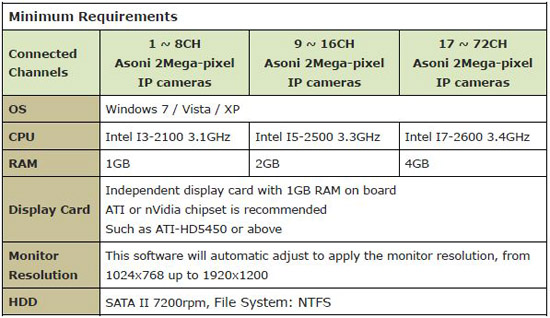

| Q: I want to use SOL recording software, what is the hardware requirement? |
TOP |
 |
|
| |
| Q: How to set up Asoni360? |
TOP |
A: You can refer to here to set up Asoni360. More about Asoni360's information, please check here |
|
| |
| Q: I can't find camera by IP search tool? |
TOP |
A:
Please follow below steps:
| 1. Connect camera to PC directly without thought any network device(switch, router). |
2. Please disable anti-virus program temporary.
|
3.
- Click "Start"
- Click "Run"
- Type "cmd" then click "Enter"
- Type "arp -d" then click "Enter" (as right picture)
- Please use IP search tool again |
 |
4. Please do camera hardware reset, you can refer to the final chapter of user manual.
If you don't know how to do hardware reset, please email to fae@a-soni.com |
|
|
| |
| Q: How to set PPPoE and DDNS? |
TOP |
A: If your network environment is PPPoE, you must set the DDNS function. If you don't set DDNS function, you must to know camera IP address of every connection, it will be very difficult. Regrading set PPPoE and DDNS functions, please refer to here. |
|
| |
| Q: How to embed Camera's or SVR's video in the webpage? |
TOP |
A: Please download 1CH / 4CH file as reference. You can modify the html code to suit your webpage. |
|
| |
| Q: Can I see Asoni360 video in NVR or SOL recording software? |
TOP |

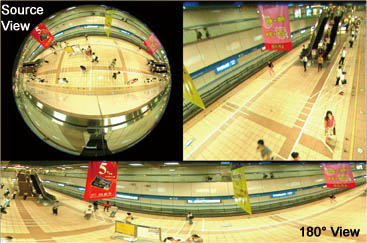

A: Asoni360 is not a camera, it's a complete solution, you can refer to below picture:
Fish Eye Lens + Supported IP Camera + Asoni360 License = Complete Asoni360 Solution.
The image of windwos 2 and 3 is simulated by Asoni360 software. If you connect the fish eye lens camera with NVR or SOL recording software, you will only see the soure image just like above picture windows 1. More about Asoni360's information, please check here
|
|
| |
| Q: What kinds of Operation System are supported by Asoni products? |
TOP |
A: Windows XP / Win 7 / Vista are recommended. When you use Windows Server 2003/2008 as OS, you may occur some access authority issues. |
|
| |
| Q: Error message in SOL recording software |
TOP |
A: When you run SOL and occur error message as below picture:
Please enable "DirectDraw acceleration"
Steps:
1. Click "Start"
2. Click "Run"
3. Type "dxdiag"
4. Do you want to allow DxDiag to check...? Click Yes.
5. Direct Diagnostic Tool -> Display -> Enable DirectDraw Acceleration |
|
| |
| Q: How can I view SOL video via mobile phone? |
TOP |
A: Only professional version SOL supports 3G mobile viewing function.

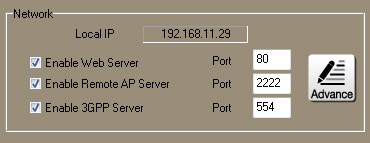

First, you need to enable 3GPP Server function.
The second,
type local PC IP address, rtsp port(554) and channel number as below pictures:

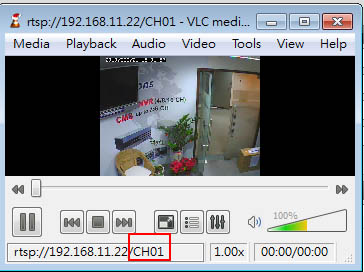

Below picture uses VLC player to simulate viewing by mobile phone:
Please type: rtsp:// PC IP address : PC rtsp port / CH number as picture showing
( Default rtsp port is 554, if your PC rtsp port is 554, you don't need type rtsp port )
|
|
| |
| |
| |
