‧1/3" SONY CCD(NTSC:510H*492V)
‧SONY DSP Controller
‧Resolution:380TV Line
‧Min. Illumination: 0.1Lux(F1.2)
‧S/N Ratio: more than 48DB
‧Back Light Compensation: ON/OFF
‧Iris Control: Video/DC Lens
‧Gain Control: Auto
‧Electronic Shutter: range(NTSC:1/60-1/100,000sec)
‧SYNC System: internal
‧Power Supply:DC12V
|

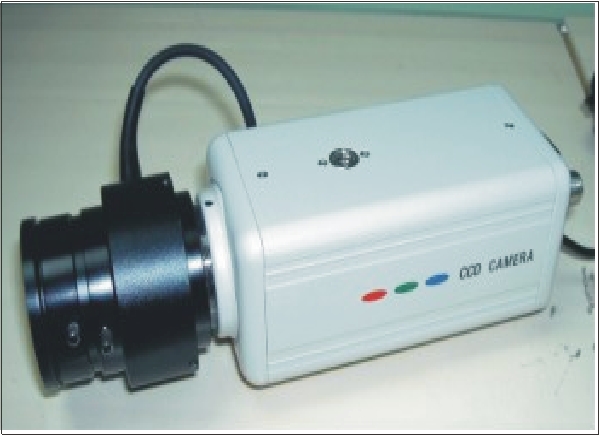

A275F
(Box Camera)  |
|
|
‧1/3" SONY CCD(NTSC:510H*492V)
‧SONY DSP Controller
‧Min. Illumination: 0.2Lux(F2.0)
‧S/N Ratio: more than 48DB
‧Lens Furnished: Cone Lens3.7mm/F2.0
‧Power Consumption: 142mA max
‧Gain Control: Auto
‧Electronic Shutter: range(NTSC:1/60-1/100,000sec)
‧SYNC System: internal
‧Power Supply:DC12V
|

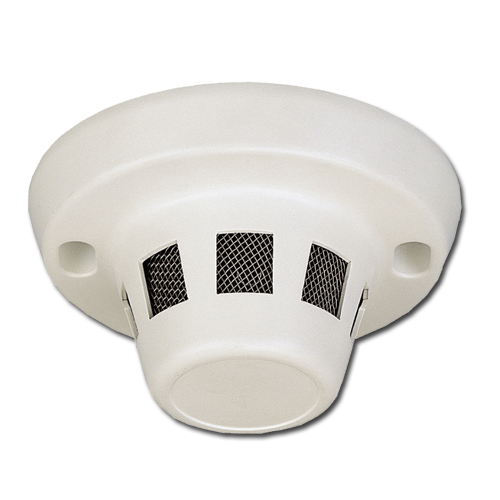

A2611
(Smoke Detector)
 |
|
|
‧1/3" SHARP CCD(NTSC:768H*494V)
‧Resolution:470TV Line
‧White Balance: Automatically(2500K~9500K)
‧Min. Illumination: 0.2Lux(F2.0)
‧S/N Ratio: more than 48DB
‧Back Light Compensation:ON/OFF
‧Iris Control:Video/DC Lens
‧Gain Control: Auto
‧SYNC System: Negative Sync. Internal
‧Power Supply:DC12V
|

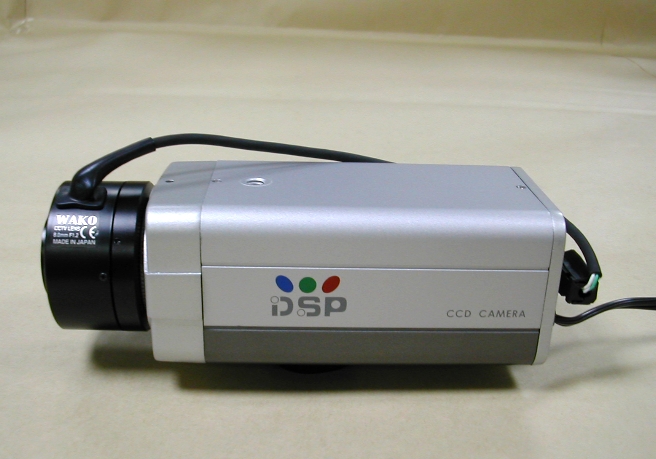

AMB-962G3
(High-Resolution)
 |
|
|
|
‧ 1/3"Sony super HAD CCD(NTSC:768H*494V)
‧ High Resolution:520TV Line
‧ White Balance: Auto/Manual
‧ Min. Illumination:0.01Lux(F1.2)
‧ S/N Ratio: more than 52DB
‧ Back Light Compensation: Low/Middle/High/Close
‧ Iris Control: Video/DC Lens
‧ Gain Control: Auto
‧ Electronic Shuuter: Auto/Manual range
(NTSC:1/60-1/100,000sec)
‧ SYNC.System:Negative Sync.Internal
‧ Power Supply:DC12V
|

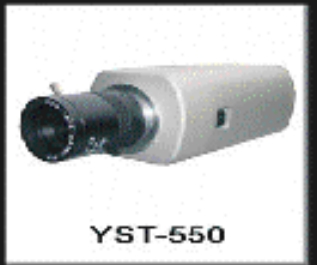

AYST-550
(Hi-Res OSD Camera)
 |
|
|
|
‧ Up to 540TVL
‧ Day/Night function
‧ AC 24V with Line Lock (optional)
‧ Night vision (optional)
|
ATC-15I_4.9
(Dome Camera)
 |
|
|
|
‧1/3" SONY CCD+SONY DSP
‧Resolution:380 TV Line(NTSC:510Hx492V)
‧Min. Illumination:0.2Lux(F2.0)
‧S/N Ratio: more than 48DB
‧Lens Furnished: Board Lens3.6mm/F2.0
‧Gain Control: auto
‧White Balance: auto
‧Electronic Shutter:(NTSC:1/60-1/100,000sec)
‧Sync. System: Internal
‧Power Supply:DC12V
|

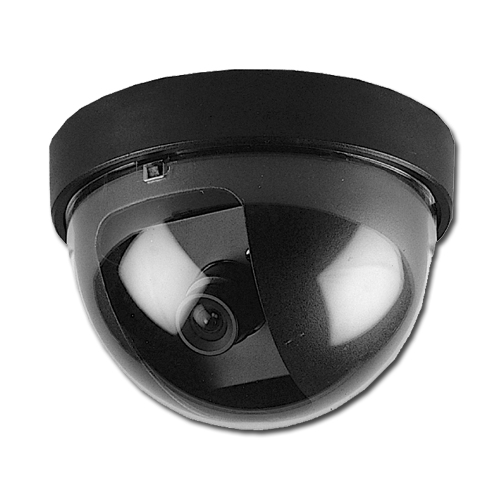

AR2311
(Dome Camera)
 |
|
|
Infra-Red Camera |
|
‧1/3"SONY CCD+nextchip DSP
‧Resolution:380TV Line(NTSC:537Hx505V)
‧Min.Illumination:0.5Lux(F2.0)
‧S/N Ratio:more than 48DB
‧Built in Lens(4mm,6mm)
‧Back Light Compensation: ON/OFF
‧SYNC. System: Internal
‧Electronic Shutter range(NTSC:1/60-1/100,000sec)
‧LED Spectrum:850mm,14pcs IR LED/10-15 Meter
‧Power Supply:DC12V
|

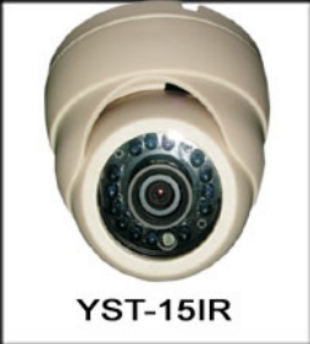

AYST-15IRS-XXseries
 |
|
|
|
‧1/3"SONY CCD+nextchip DSP
‧Resolution:380TVLine(NTSC:510H*492V)
‧Min. Illumination:0.2Lux/F2.0
‧S/N Ratio:more than 48DB
‧Lens Furnished:4/6/8/12mm
‧Back Light Compensation:auto
‧Water Proofing criterion: IP67
‧White Balance: Auto
‧Electronic Shutter:range(NTSC:1/60-1/100,000sec)
‧LED SPECTRUM:850mmx36pcs IR LED/15-20Meter
‧Power Supply:DC12V
|

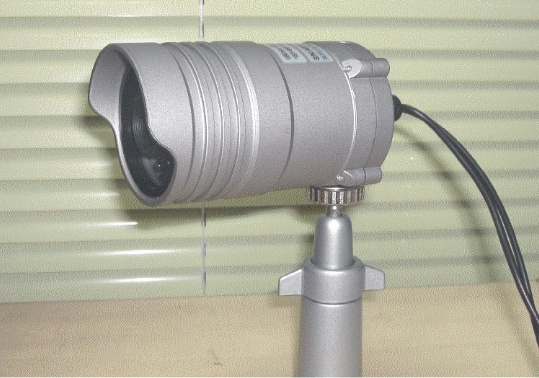

AYST-65D-XXseries
(Indoor Type)
 |
|
|
‧1/3"SONY CCD+SONY DSP
‧Resolution:380TVLine(NTSC:510H*492V)
‧Min. Illumination:0.2Lux/F2.0
‧S/N Ratio:more than 48DB
‧Lens Furnished:4/6/8/12mm
‧Back Light Compensation:auto
‧Water Proofing criterion: IP67
‧White Balance: Auto
‧Electronic Shutter:range(NTSC:1/60-1/100,000sec)
‧LED SPECTRUM:850mmx36pcs IR LED/15-20Meter
‧Power Supply:DC12V
|

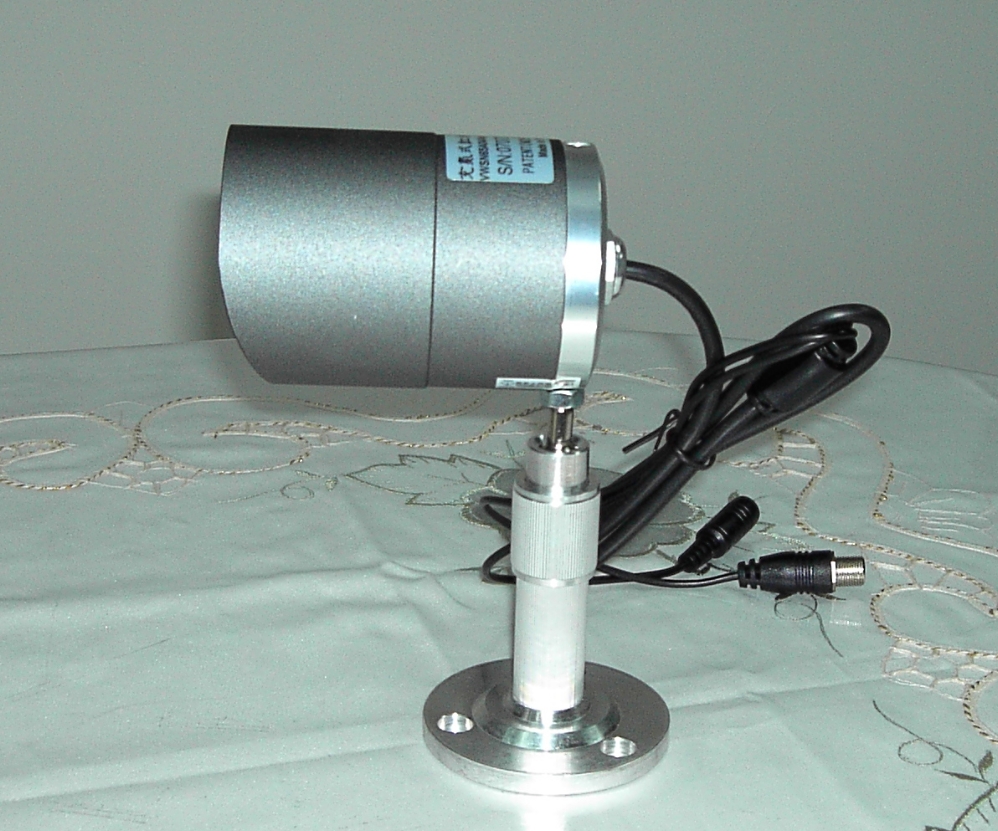

AYST-65A-XXseries
(Indoor Type)
 |
|
|
‧1/3"SONY CCD+SONY DSP
‧Resolution:380TVLine(NTSC:510H*492V)
‧Min. Illumination:0.2Lux/F2.0
‧S/N Ratio:more than 48DB
‧Lens Furnished:4/6/8/12mm
‧Back Light Compensation:auto
‧Water Proofing criterion: IP66
‧White Balance: Auto
‧Electronic Shutter:range(NTSC:1/60-1/100,000sec)
‧LED SPECTRUM:850mmx48pcs IR LED/25-30Meter
‧Power Supply:DC12V
|
AYST-75A-XXseries
(Indoor/Outdoor Type)
|
|
|
‧1/3"SONY CCD+SONY DSP
‧Resolution:380TVLine(NTSC:510H*492V)
‧Min. Illumination:0.2Lux/F2.0
‧S/N Ratio:more than 48DB
‧Lens Furnished:6/8/12/16mm
‧Back Light Compensation:auto
‧Water Proofing criterion: IP66
‧White Balance: Auto
‧Electronic Shutter:range(NTSC:1/60-1/100,000sec)
‧LED SPECTRUM:850mmx84pcs IR LED/30-50Meter
‧Power Supply:DC12V or AC100-240V
|

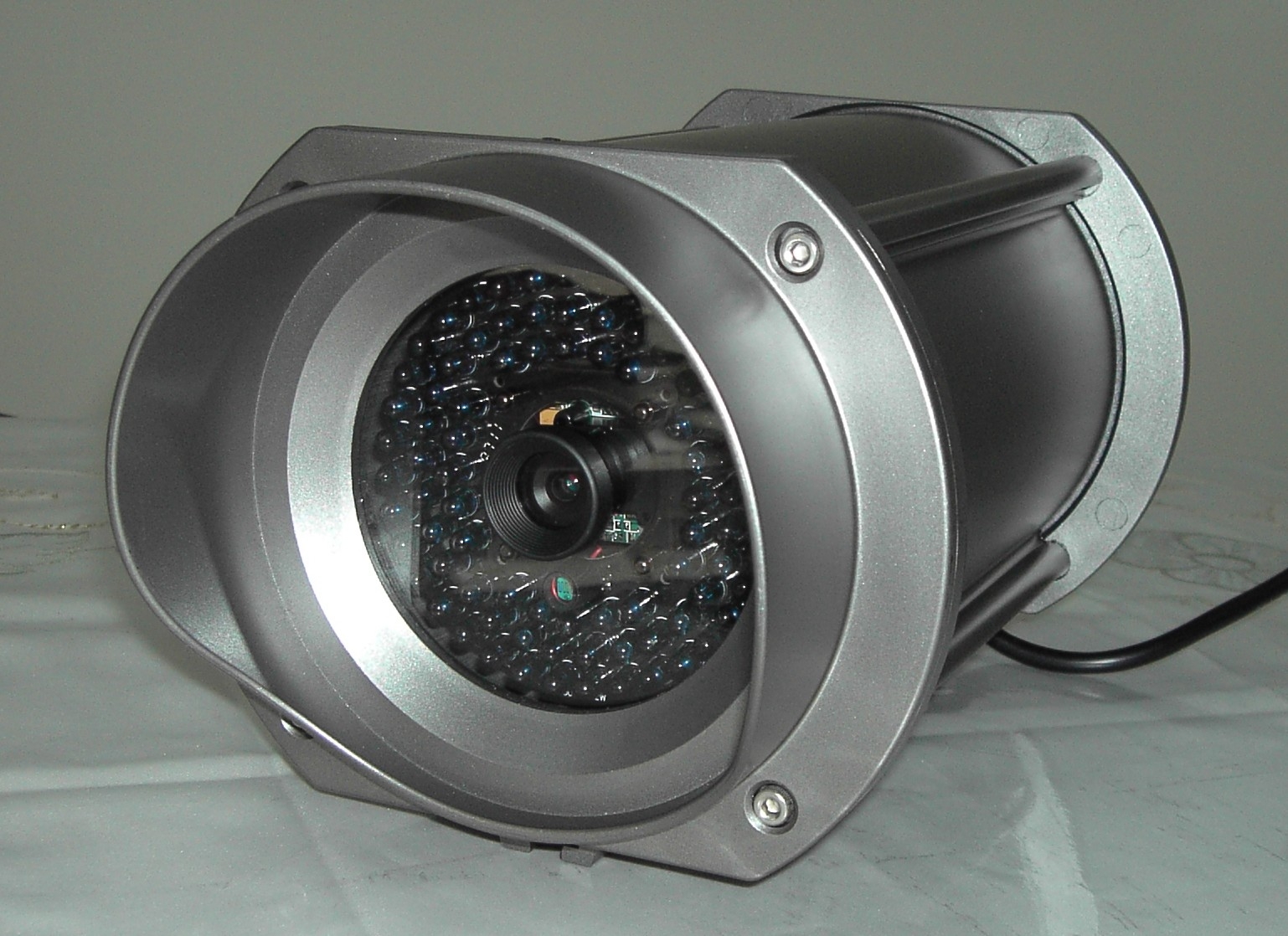

AYST-85E-XXseries
(Outdoor Type)
 |
